Wind Data Evolved

NAVIS Anemometers consist of wind speed and/or wind direction sensors which wirelessly transmit real time wind and temperature data to your paired display unit and in some applications to your smartphone or tablet via our WINDY™ smartphone app. With our free app, you can read instant data including, average and maximum wind speed, direction, temperature and view history graphs.

  • Wireless sensor and magnetic mounting
  • Long range, 1,300 m/4,265 f (WSM W410 X/B/M)
  • Alarm and pre-alarm warning lights
  • Built-in audible alarm
  • 3 programmable alarm relay outputs (WSM 410 3R)
  • Up to 5 years sensor battery life

Specifications / Instructions:

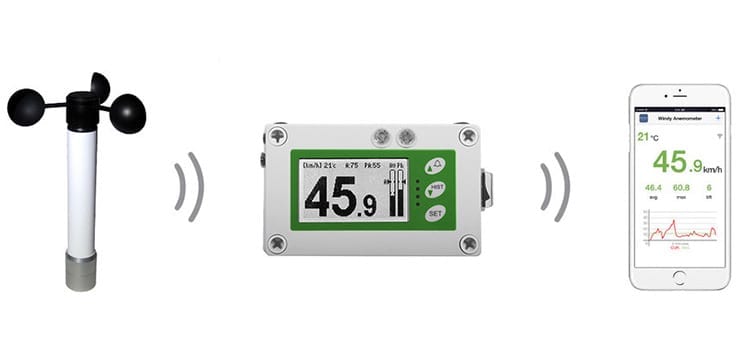

anemometers and display

Models
  • WSM W410 X/B/M (Long Range with Standard Display and Bluetooth Data Feed To Smartphone)
  • WSM W410X/4-20mA (Extended Range 3 x Relay + 4-20 mA Outputs)
  • WSM W410/4-20mA (3 x Relay + 4-20 mA Outputs)
  • WSM W410X (Extended Range, 3 x Relay Outputs)
  • WSM W410 ( 3 x Relay Outputs)
Brochure download
Applications
  • Mobile, tower and bridge crane applications
  • Lift applications
  • Wherever wind speed alarm is needed
Features
  • Wireless sensor and magnetic mounting
  • Long range, up to 500 m (1300 m w/W410X)
  • Up to 5 years sensor battery life
  • Alarm and pre-alarm warning lights
  • Built-in audible alarm
  • 3 programmable alarm relay outputs
  • Back-lit graphic LCD
  • Magnetic sensor mounting (accessory)
  • Self leveling sensor mounting (accessory)
  • Optional wireless repeater/recorder
Functions
  • Current wind speed
  • Bar graph for current wind speed
  • Bar graph for peak wind speed in last 2 min
  • 3 programmable alarm relays with adjustable ON OFF delays
  • 8 h wind speed and alarm history graph
  • Temperature
Setup Instructions

Get it on Google PlayDownload on App Store

  1. Stick the Anemometer anywhere you need, with its handy magnetic bracket
  2. Attach your display unit to any metal surface with its handy magnetic bracket
  3. Turn on your display unit (your anemometer and display are already set up to talk to each other)
  4. Set your desired safety parameters
  5. Upload WINDY™ to your smart phone and set your safety parameters
  6. Enter the unit number of your Anemometer into the smart phone application
  7. The smartphone application will parallel the display unit up to 100 meters
Technical Specifications
Spec Model 1
Measurement Range 0,8-50,0 m/s
Unit of Measurement m/s, km/h, knots, mph
Averaging Period Selectable: 2 s, 10 s, 30 s
Operating Voltage 12-24 V DC
Power Consumption Max 300 mA
WSM W410 Transm Dist. Up to 500 m
WSM W410X Transm Dist. Up to 1300 m
Transm Dist. W/ 2 Yagi Antennas 5-8x nominal range
Operating Frequency 868 MHz, optionally 908 MHz
Temp Operating Range -25˚…+60˚C
Outputs 3 x relay, 2 A/24 V
WSM W410/4-20mA Signal Output 4…20 mA
4 mA= 1 m/s
20 mA = programmable 10-50 m/s
Sound Signal 85-90 dB
Antenna Input 50 Ohm, SMA connector
Data Transmitting Every 2 seconds
Resolution 0,1 m/s
Accuracy +/- 3%
Sensor Battery 3,6 V AA Lithium batter, enclosed
Battery Life Up to 5 years (3 years on WSM W410X)
Sensor Bearings 2x precision SS ball bearings
Sensor Housing AL/PVC
Sensor Cups (Replaceable) PA (NYLON)
Casing Receiver ABS, Ip65
Receiver Dimensions 150 x 80 55 mm
Sensor Dimensions 210 mm H, overall dia 120 mm
Mounting Mounted on 20 mm dia pipe
