Know Windspeed & Wind Chill Instantly

WINDY™ Smartphone Anemometers consist of wind speed and direction sensors which wirelessly transmit real time wind and temperature data to your smartphone or tablet. With a free app, you can read instant data of current, average and maximum wind speed, direction, temperature and view history graphs.

Specifications / Instructions:

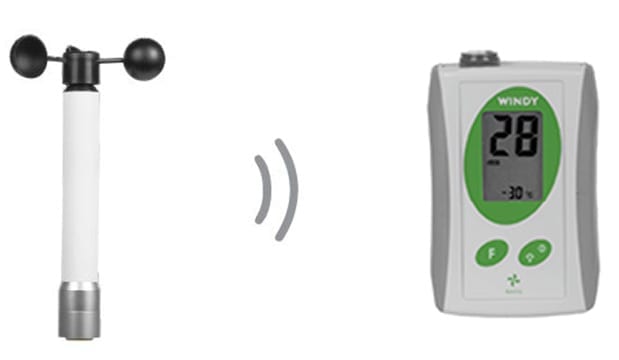

Wind Chill Anemometer
Features
  • Wireless link to Smartphones and tablets via free app
  • Range up to 400 m/1,321 feet
  • Data refresh every 2 seconds
  • 4 years of sensor battery life
  • Wind tunnel calibrated sensors with precision stainless steel ball bearing and replaceable cups
  • Programmable wind speed alarm
Functions
  • Current wind speed
  • Maximum wind speed
  • Average wind speed (selectable averaging)
  • All standard units (knots, m/s, mph, km/h)
  • Beaufort bar graph
  • Temperature in degrees Celsius or Fahrenheit
  • Wind chill – subjective ambient temperature dependent on wind speed
  • Sound alarm at exceeded wind speed
Brochure download
Applications
  • Lift
  • Mobile
  • Tower
  • Bridge
  • Wherever wind speed and/or wind chill alarm is needed
Setup Instructions

Get it on Google PlayDownload on App Store

  1. Stick the Anemometer anywhere you need, with its handy magnetic bracket
  2. Attach your display unit to any metal surface with its handy magnetic bracket
  3. Turn on your display unit (your anemometer and display are already set up to talk to each other)
  4. Set your desired safety parameters
  5. Upload WINDY™ to your smart phone and set your safety parameters
  6. Enter the unit number of your Anemometer into the smart phone application
  7. The smartphone application will parallel the display unit up to 100 meters
Technical Specifications
Spec WINDY B/S (Windspeed Sensor)
Measurement Range 0,6 – 50,0 m/s
Measurement Range: Temp -30 °C – +60 °C
Units of Measurement m/s, km/h, knots, mph, Bft
Units of Measurement: Temp °C, °F
Resolution: Wind Speed 0,1 unit (under 9,9) 1unit (above 10)
Resolution: Temp 1 °C
Accuracy: Wind speed +/- 3%
Accuracy: Temp +/- 1°C
Averaging Period, Selectable 2s, 10s, 30s, 2min, 5min
Display Updating Every 2 seconds
Data Transmission Every 2 seconds
Transmission Frequency 868 MHz
Battery: Sensor 1 x 3,6 V AA Lithium battery,
replaceable (included)
Battery Life: Sensor Up to 4 years
Battery Life: Display Unit Up to 5000 hours
Battery Life with Backlighting 300 hours
Dimensions: Sensor Height 210 mm overall diameter up to cup 120 mm
Material: Sensor Polyamide cups, aluminum base
Dimensions: Display Unit 94 x 63 x 28 mm
Mounting The sensor mounts on a pipe with 20 mm diameter
