Wind Data Evolved

NAVIS Anemometers consist of wind speed and/or wind direction sensors which wirelessly transmit real time wind and temperature data to your paired display unit. Read instant data including, average and maximum wind speed, direction, temperature and view history graphs.

With the NAVIS Data Logging System you get all of the NAVIS benefits plus a complete data history running up to 168 consecutive hours stored on exchangeable SD cards.

Specifications / Instructions:

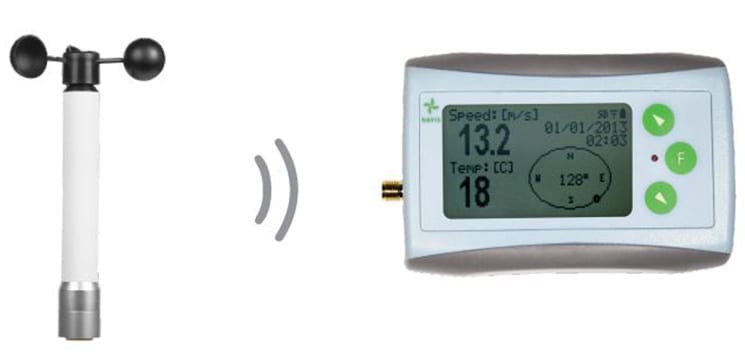

long range anemometers

Models
Standard Range (Up to 250m/820 feet)
  • WL 11/WS (Windspeed Sensor)
  • WL 11/WSD (Windspeed + Wind Direction Sensor)
Extended Range (Up to 1200m/3,937 feet)
  • WL 11x/WS (Windspeed Sensor
  • WL 11x/WSD (Windspeed + Wind Direction Sensor)
Features
  • Easy-to-use solution for wind site evaluation
  • Shows and stores all vital wind data
  • Range up to 250m (1200m at W11 model)
  • Easy installation without running cables
  • Replaceable anemometer cups
  • Up to 4 years sensor battery life
  • Range up to 250 (1200)
Functions
  • Shown on LCD
  • Current wind speed and temp. and optional wind direction
  • Unique date/time stamp, 24 hour wind speed, and temp. graphs
  • 7 day history of instant and average wind speed stored to SD card
  • Average and maximum wind speed, temp. at selected interval
  • Average wind direction (Optional)
Brochure download
Historical Data

Setup Instructions
  1. Stick the Anemometer anywhere you need, with its handy magnetic bracket
  2. Attach your display unit to any metal surface with its handy magnetic bracket
  3. Turn on your display unit (your anemometer and display are already set up to talk to each other)
  4. Set your desired safety parameters
Technical Specifications
Spec Model 1
Logging Av. & max. wind seed, wind dir, temp
Logging Interval Selectable: 10 s, 1 min, 10 min, 60 min
Data Recording Up to 12 mos, .txt data format
Memory Card micro SD (4GB included)
Wind Speed Range 0,6 … 50 m/s
Wind Direction Measurement 0°-359°, no blank sector
Temp Measurement Range -30 … +60°C
Wind Speed Units m/s, km/h, knots, mph
Temp Units °C, °F
Wind Speed Resolution 0,1 m/s
Wind Direction Resolution
Temp Resolution 1°C
Wind Speed Accuracy typ. +/- 3%
Wind Direction Accuracy +/- 2.5°
Temp Accuracy +/- 1°C
Comm Frequency 868 MHz, optionally 908 MHz
Data Transmitting Every 2 seconds
Range Type WL 11, up to 250 m visible distance
Sensor Battery 1 x 3,6 V AA lithium battery (included)
Receiver Battery 2 x 1,5 V AA battery (not included)
Sensor Battery Life Up to 4 years ( up to 3 yrs at WL 11X model)
Receiver Battery Life Up to 12 mos, up to 6 mos with both sensors
Sensor Bearings 2x precision stainless steel ball bearing
Casing Receiver ABS, 94 x 63 x 28 mm
Sensor Materials
Housing Materials Anodized Aluminum, PVC
Cup Materials (Replaceable) PA (Polyamide)
Sensor Dimensions 210mm H, 120mm overall diameter
Mounting The sensor mounts on 20 mm pipe
Antenna Input 50 Ohm, SMA connector
